| Products Technical Specification | ||

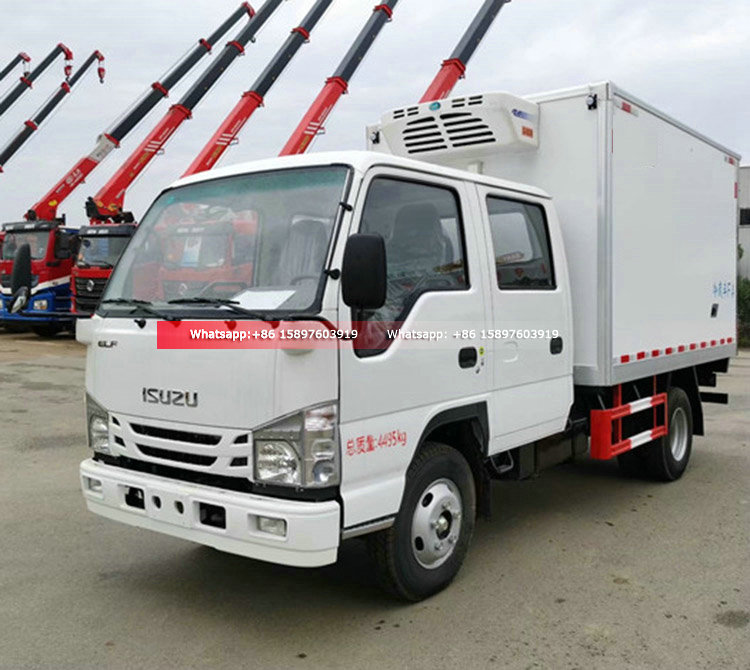

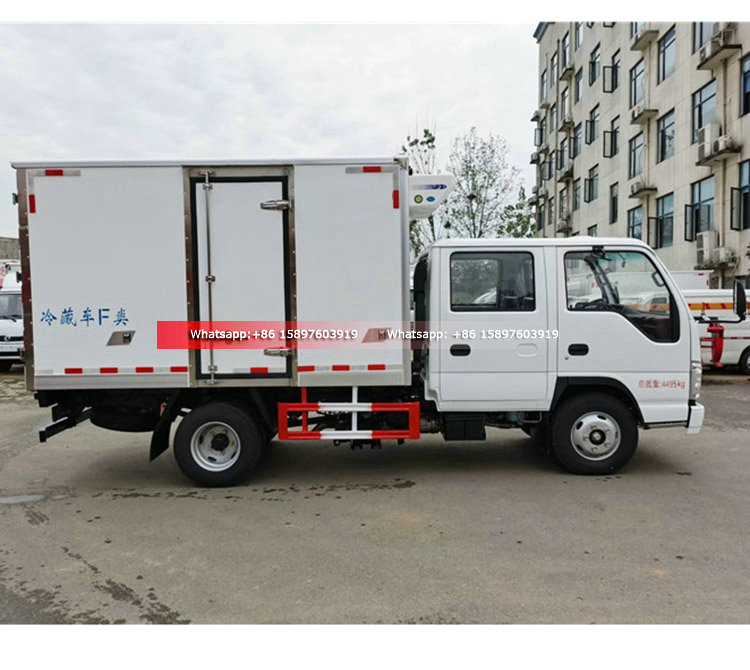

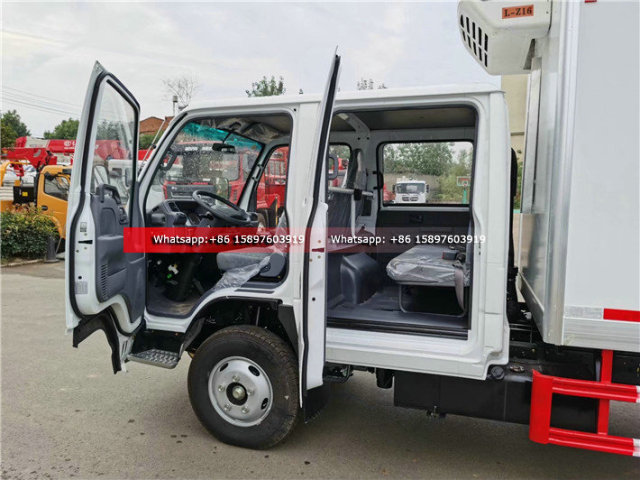

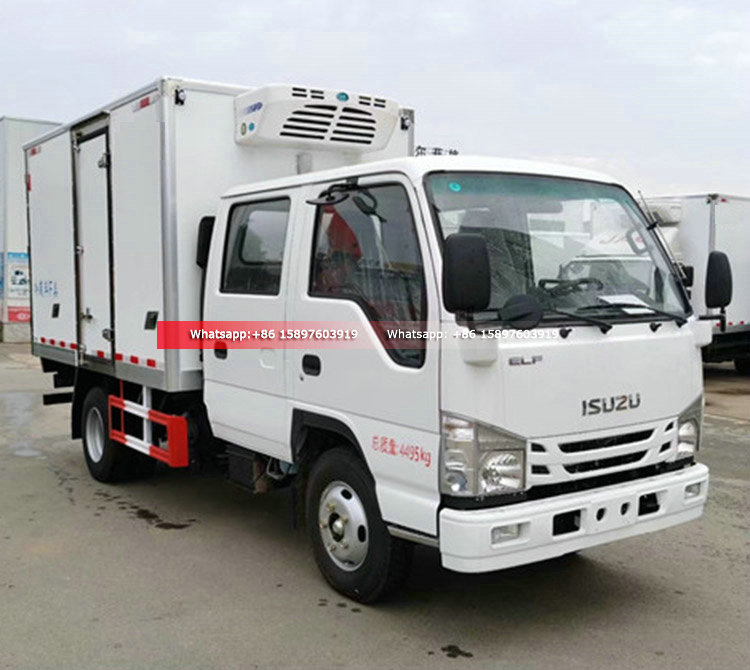

| Type | ISUZU Double Cabin Refrigerator truck | |
| Brand | ISUZU 4*2 | |
| Cab | Power steering, Air Condition | |
| Vehicle Description | ||
| Overall dimensions（mm） | 5995×2070×2960mm | |
| Curb weight(vehicle) (kg) | 3210 | |
| Loading capacity (kg) | 2000-4000 | |
| Max speed (Km/h) | 95-120 | |
| Engine | ||
| Mode | 4KH1CN6LB | |
| Type | Diesel, 4-cylinder in line with water cooling,turbo-charging | |
| Max. power/rotated speed | 88(KW) /120HP | |
| Displacement(ML) | 2999 | |
| Emission level | Euro 6 | |
| Chassis Description | ||
| Wheel base | 3360 | |
| Front axle | 2T | |
| Rear axle | 4T | |
| Front tread / rear tread | 1377/1425 | |
| Gear box | ISUZU MSB 5-speed | |
| Brake system | Oil brake belt vacuum booster pump | |
| Electric system | 24V | |
| Tyres | 7.00R16 | |
| Other attached components: | ||
| Van Size | 3200*1800*1700mm | |
| Refrigerator Van body material | Min temperature up to -18 degree.The temperature can be adjusted. | |
| Outside and inside Glass Fiber Reinforced plastics 2.2mm | ||
| Middle material is Polyurethane Foam. | ||
| Van body thickness: 80mm | ||
| Door thickness: 80mm | ||
| Van body | Around van body: 2.5mm Aluminum Alloy, stainless steel corner, locker, door frame. | |
| spare | Lighting inside of van body. | |
| Van body plate: Good impact resistance, the atmosphere, water and acid, alkali, salt and other media with good corrosion resistance and aging resistance | ||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Standard insulation box | Five sided ventilation duct | Detachable meat hook skeleton |
 |
 |
 |
| Pre embedded guide rail meat hook | All stainless steel interior | Stainless steel patterned flooring |
 |
 |
 |
| Bottom stainless steel patterned plate | Ventilation worker corrugated floor | Glass patterned flooring |
 |
 |
 |
| Fully welded ventilation duct | 220/380V external power supply | Stainless steel meat hook |
 |
 |
 |
| Bread refrigerated truck with side door | Bread refrigerated truck ventilation duct | Stainless steel bread refrigerated truck |
 |
 |
 |
| Temperature and humidity recorder | Interior of Chicken Seed Car | Live fish transport vehicle |
 |
 |
| ISUZU ELF 100P Small Light Truck With New 4K engine Continuing the advantages of high reliability, high economy, and high power of the Isuzu 4K series, while comprehensively upgrading its core performance, it can meet the usage needs of high-end urban customers of small trucks in the future. |
ISUZU ELF 100P Truck Hard core quality, trustworthy 100P is built using advanced new technologies, materials, and processes, with significant leadership, reliability, and economy. It faces the market and consumers with a "hardcore" image of high efficiency, reliability, durability, comfort, environmental protection, and fuel efficiency, and is highly trusted by users. |
 |
 |
| ISUZU ELF 100P Truck Chassis Lightweight chassis High technology, high-strength materials, and high-precision technology are used to strengthen the design of the front and rear axles, ensuring good stability and comfort. The lightweight chassis and frame beam can meet the cargo needs of users |

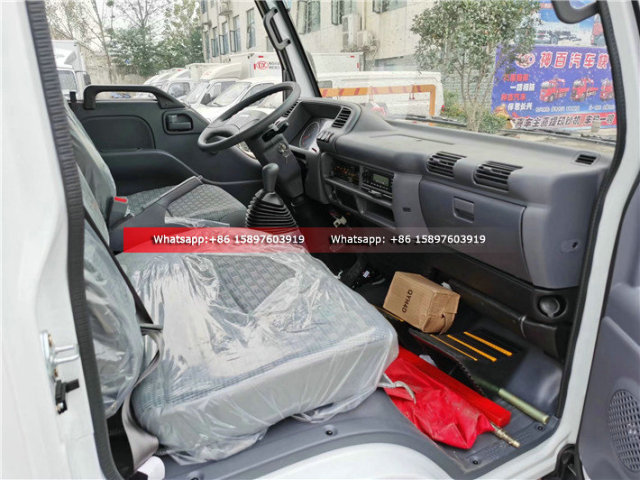

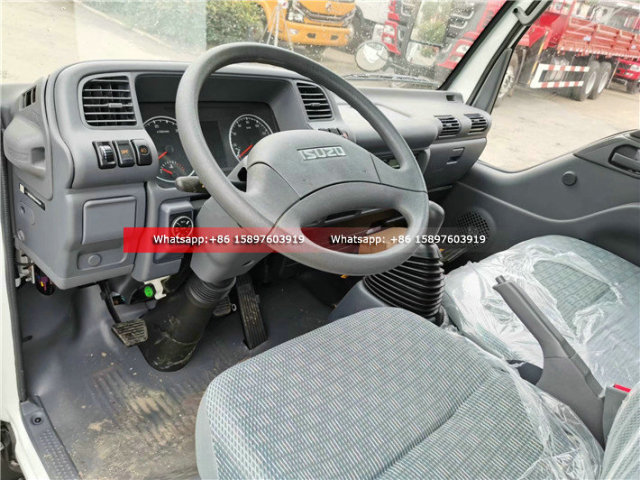

ISUZU ELF 100P Brand new driver's cabin The large curvature rearview mirror provides a wide field of view. The front window glass and side window A-pillar blind spot are only 7 °. It adopts sedan style seats, soft steering wheel, refreshing and comfortable, and the driver will not feel tired during long-distance driving |
We have 20 years of experience in exporting specialized vehicles and can provide customized export services according to user requirements.
|
