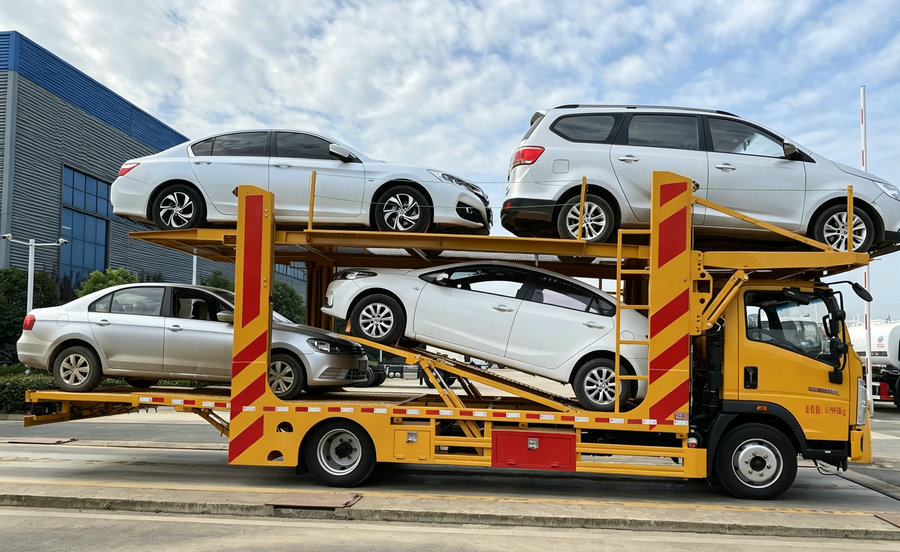

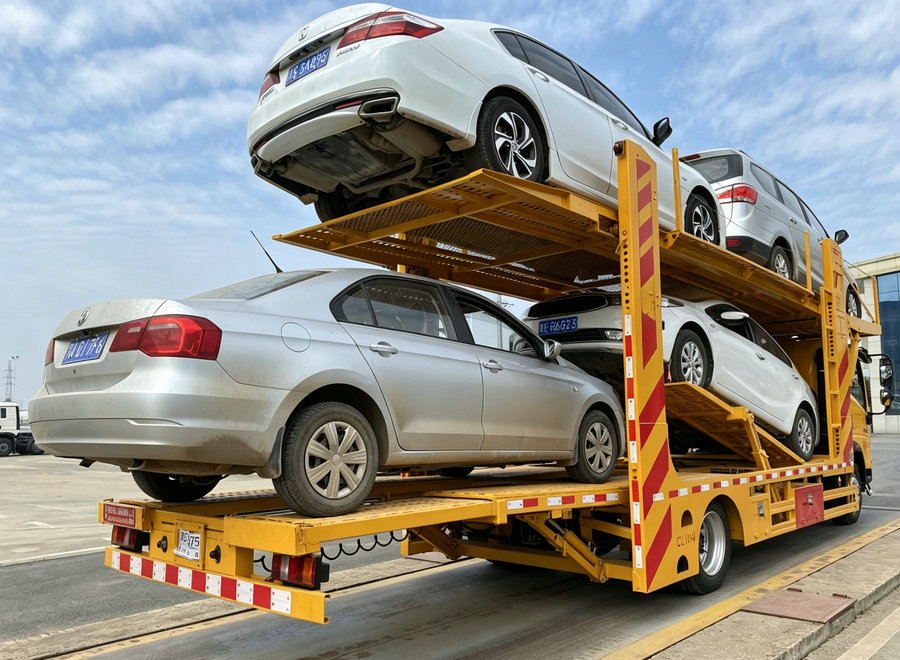

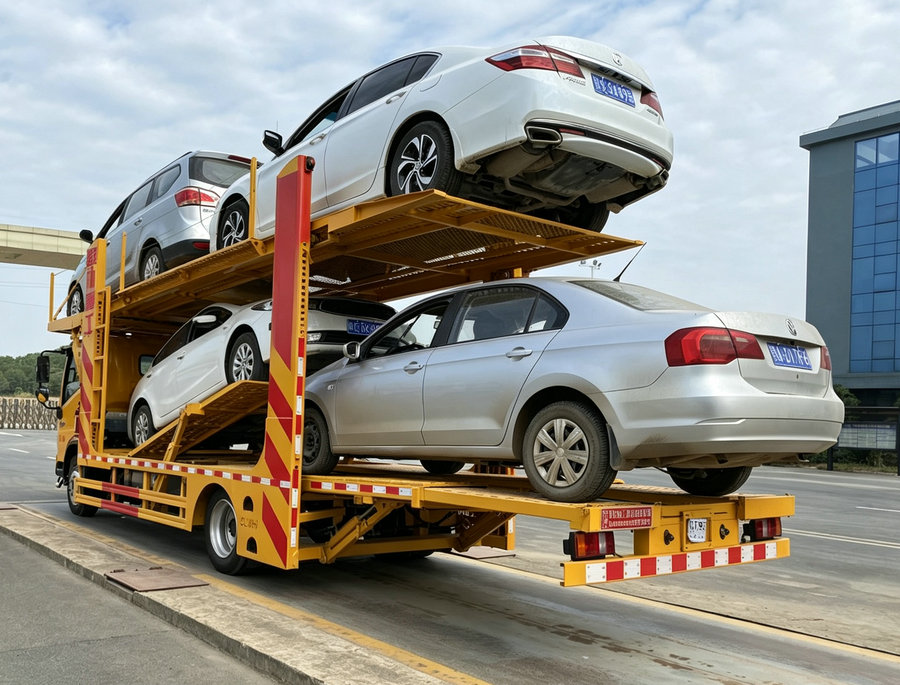

Sinotruk HOWO Double Deck Car Carrier Truck
Vehicle dimensions 8210 * 2500 * 3600
Chassis configuration: wide body driver's cab for Howo,
Weichai 160HP Engine ,
8-speed gearbox with high and low speeds,
Tire :245/70R19.5
Wheelbase: 4500 wheelbase,
200L aluminum alloy fuel tank, leather seats, air brake, air horn, original air conditioning.
Installation configuration:
The upper board is 8.3 meters long (can be extended by 0.5 meters),
The lower panel is 6.5 meters long (with a hydraulic extension of 1.5 meters at the tail), equipped with an aircraft jump on the lower panel, with a width of 2.3 meters and a vehicle height of 3.5 meters,
The lower plate is 1 meter above the ground, and the vehicle comes standard with 11 oil cylinders (12 optional), an imported hydraulic system, and an optional hydraulic winch,

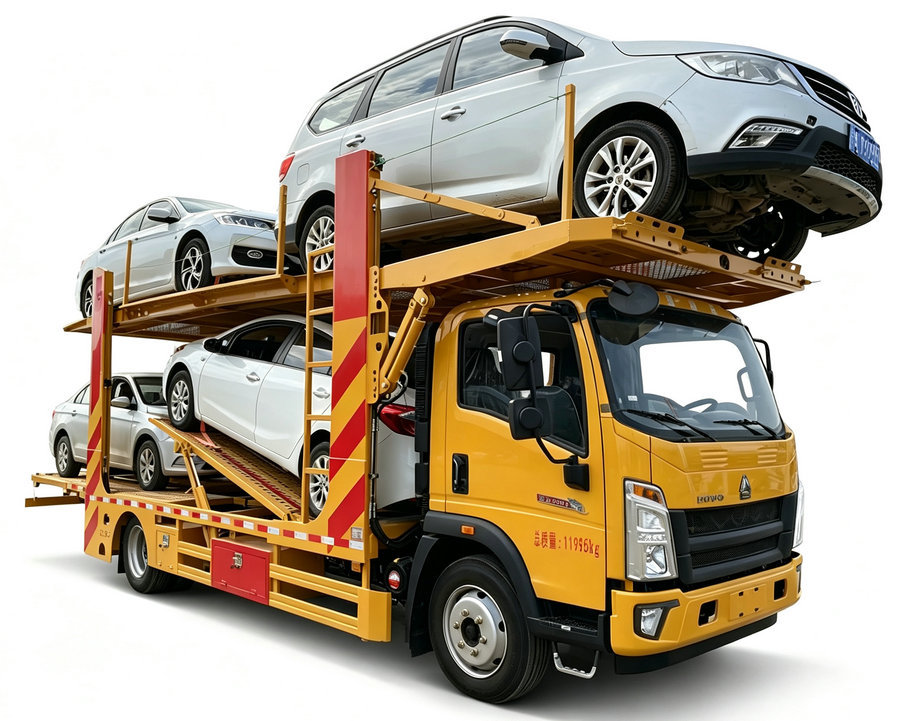

Sinotruk HOWO double deck car transporter with hydraulic two-layer platform, for transporting sedans and SUVs. High efficient light duty car hauler for auto logistics.
The lower board is equipped with a ramp and hydraulic lifting, which increases the utilization rate of the truck
Sinotruk HOWO Double Deck Car Carrier Truck
Our HOWO light-duty double deck car transporter adopts hydraulic lifting structure. It can load several passenger cars, sedans and SUVs in a single trip.
Robust frame and stable hydraulic system ensure safety during loading and highway transportation. Widely used in automobile logistics and new vehicle delivery. Send inquiry for technical data & quotation.
our factory produces the multi-purpose vehicle transport car sedan, which can be used for one tow two, one tow three, one tow four, one tow five.
and there are also new mid axle sedan cars waiting for you to choose from.
The brand series of two seater sedan transport vehicles (three seater sedan transport vehicles) includes brands such as Dayun, Dongfeng, JAC FAW, Kaima, Liuqi, FOTON, SINOTRUK HOWO, Yuejin, etc.
Two units sedan upper configuration:
The upper plate is equipped with a net length of 4.1 meters and a width of 2.2 meters,
the lower plate is equipped with a net length of 4.2 meters and a width of 2.4 meters,
and the lower plate surface is 0.8 meters above the ground.
The whole Truck is equipped with four imported oil cylinders and an imported Italian Hyde hydraulic control system. The upper part is made of high-strength low-alloy materials. Optional hydraulic winch Yellow card two seater sedan upper configuration: the upper plate is standard with a net length of 5.2 meters and a width of 2.2 meters, the lower plate is standard with a net length of 5.7 meters and a width of 2.4 meters, and the lower plate surface is 0.8 meters above the ground.
The whole truck is standard with 4 imported oil cylinders and an imported Italian Hyde hydraulic control system. The upper configuration is made of high-strength low-alloy materials. Optional hydraulic winch Optional 4-ton tow arm.
Heavy Truck HOWO four seater sedan transport vehicle, Weichai 160 horsepower National VI, Heavy Truck eight speed high and low speed, upper main board length of 8.5 meters, front extension of 1.2 meters, lower main board of 6.5 meters, rear extension of 2 meters, 245/70R19.5 tires, 4500 wheelbase
Dongfeng KingRun 4-5units sedan transport vehicle
The upper plate is 13-14 meters long (including a front manual extension of 0.5 meters and a rear hydraulic extension of 1.5 meters), and the lower plate is 10 meters long. The upper plate is only 2.7 meters above the ground, and the lower plate loading surface is only 0.7 meters above the ground. The distance between the upper and lower plates can be adjusted freely, and the distance between the upper and lower plates can be adjusted from 0 to 2.4 meters. The upper plate is made of low-alloy high-strength materials, painted in sedan grade, with a set of tools and 24 straps. Other accessories are standard.
1. Is LHD and RHD version available?
Yes. We provide left-hand drive and right-hand drive versions to meet the traffic rules of different regions worldwide.
2. What are the main application scenarios?
Widely used for heavy construction engineering, earth and stone transportation, mine bulk material handling, municipal road renovation, urban slag and garbage transportation.
3. Can the vehicle configuration be customized?
Full customization is supported, including cargo box thickness and volume, hydraulic lifting system, wireless remote control, closed dust cover, vehicle color and interior configuration.
|
