Isuzu GIGA heavy-duty chassis, powerful, durable and stable, reliable for long-distance commodity vehicle transportation

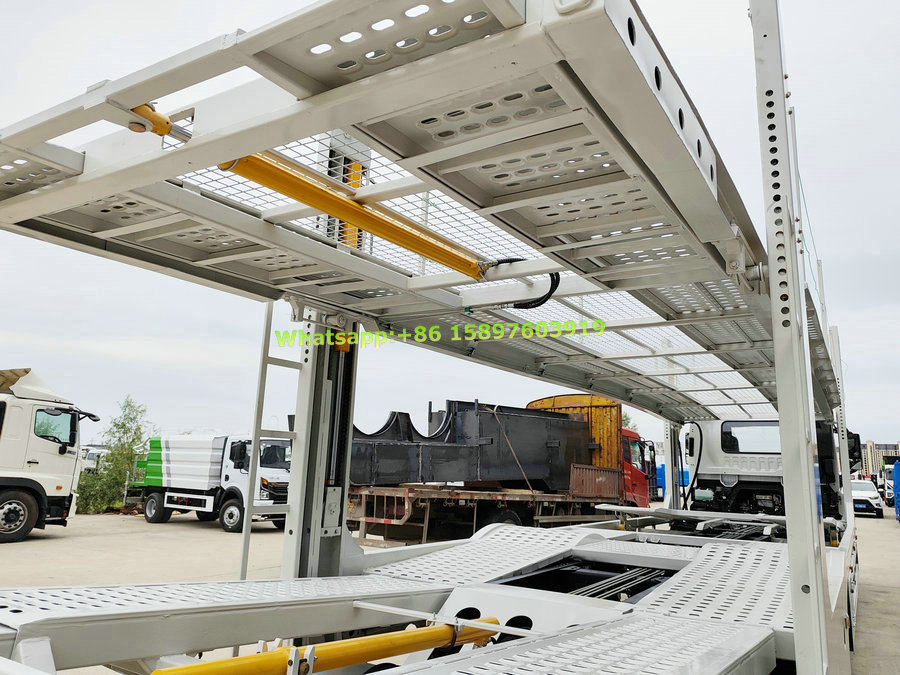

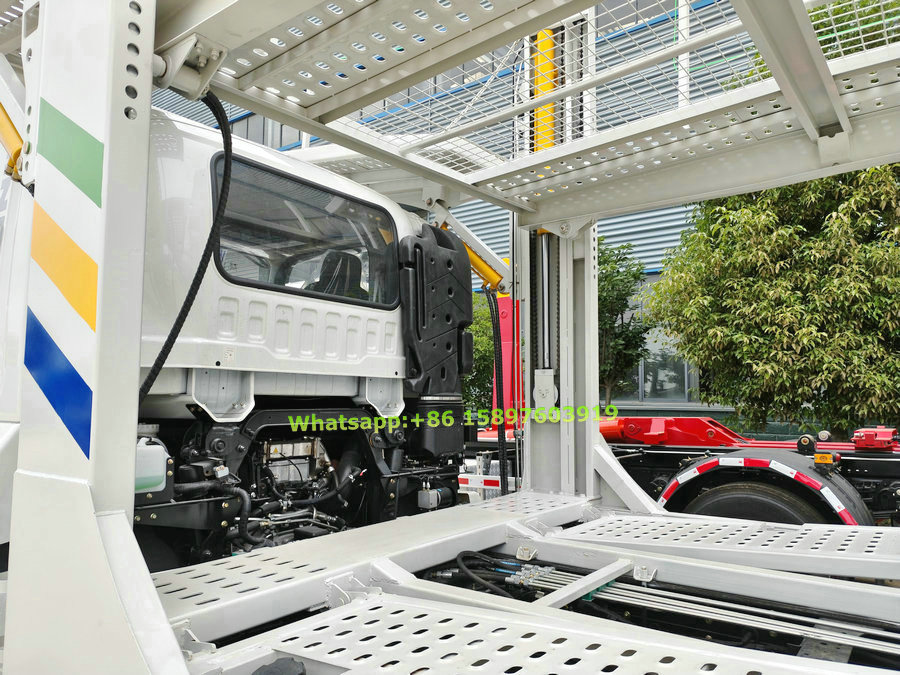

Double layer hydraulic platform, the upper layer can be tilted and lowered to form a ramp, allowing the vehicle to drive up and down without the need for a crane
High strength lightweight top, hollowed out anti slip plate, with safety guardrail and vehicle fixing straps
Can be used for left/right steering, emissions customized according to export countries, suitable for Southeast Asia, Central Asia, and Latin American markets
Compared to semi-trailer sedans, the body is shorter and the turning radius is smaller, making it more flexible for urban roads and park traffic
Chassis: Isuzu GIGA 4x2; 4HK1,6HK1 diesel engine, available in 205/240HP options; Support customization of Euro 3 to Euro 6 emissions; Manual gearbox; 295/80R22.5 steel wire tire; Single row cab, left/right steering optional.
Top: Hydraulic double-layer elevator structure;
High strength hollow anti slip steel plate platform;
Hydraulic cylinder lifting+chain locking mechanism;
Safety guardrails, wheel chocks, fastening straps, and side reflective signs; Can carry 5-6 cars/SUVs;
The overall dimensions of the vehicle are approximately 11800X 2550X3980mm, with a total weight of 18 tons.
Advantages of Double layer hydraulic platform SUV Car Carriers Truck : 4x2 6Wheels GIGA heavy-duty chassis has strong load-bearing capacity and high reliability; Hydraulic double-layer platform, ramp loading and unloading; Lightweight and high-strength body; Export customized LHD/RHD; Flexible body, suitable for urban and short distance commodity vehicle transportation.
Factory direct supply, complete customs clearance documents, global after-sales spare parts support.
| Brand of Truck | ISUZU FVR FVZ Middle Heavy Duty | |
| name of truck | ||
| driving type | 4x2 6Wheels optional all wheel drive 4x4 | |
| Cabin type | Brand new Isuzu 4X level VC61 driver's cab, air conditioner | |
| wheelbase | 3900 / 4500 / 5000 / 5350 / 5550 / 5800 / 6300 / 7200 | |
| Engine | 4HK1-TCG60 | |
| Engine power | 205HP | |
| displacement | 5190L | |
| engine type | 4-Cylinder Engine | |
| Gear box | ISUZU MLD 6 Forward | |
| Front axle loading capacity | 6.3Tons | |
| rear axle loading capacity | 13Tonsx2 | |
| tire | 295/80R22.5 18PR | |
| other standard equipment | Heating and cooling air conditioning, directional assistance, central locking system, electric doors and windows, multifunctional steering wheel, multifunctional LCD instrument panel, with ABS, air brake cut-off | |
Front and rear chains, standard upper deck net length 9650mm,
lower deck net length 7775mm,
clear space between upper and lower decks ≥ 2 meters,
upper deck can fully fall on the lower deck.
Three-stage hydraulic pull-out.

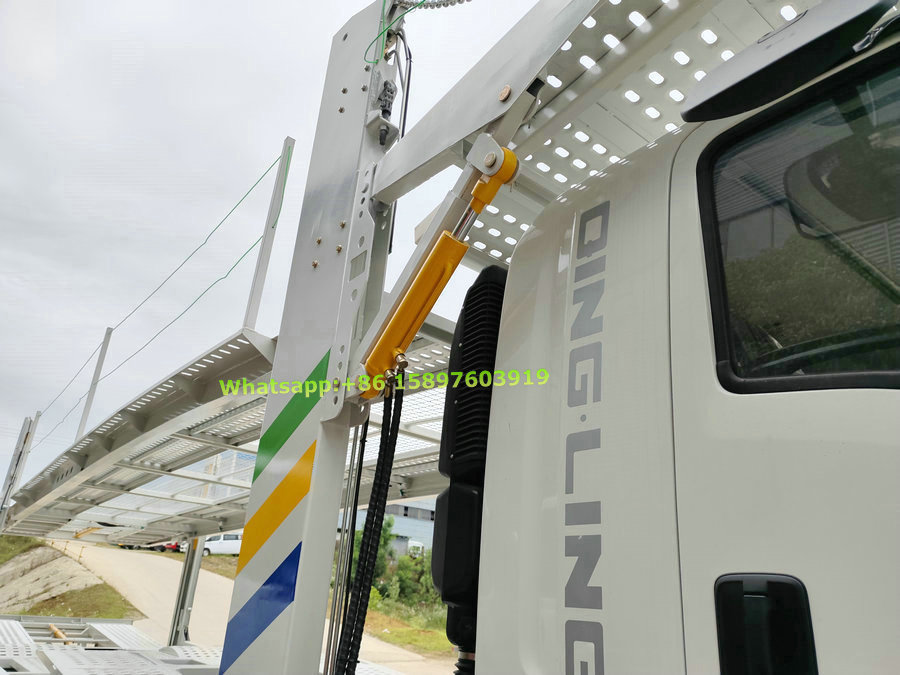

The vehicle has 9 branded hydraulic cylinders with imported seals.
High quality gear pump, control valve and high-pressure hoses.

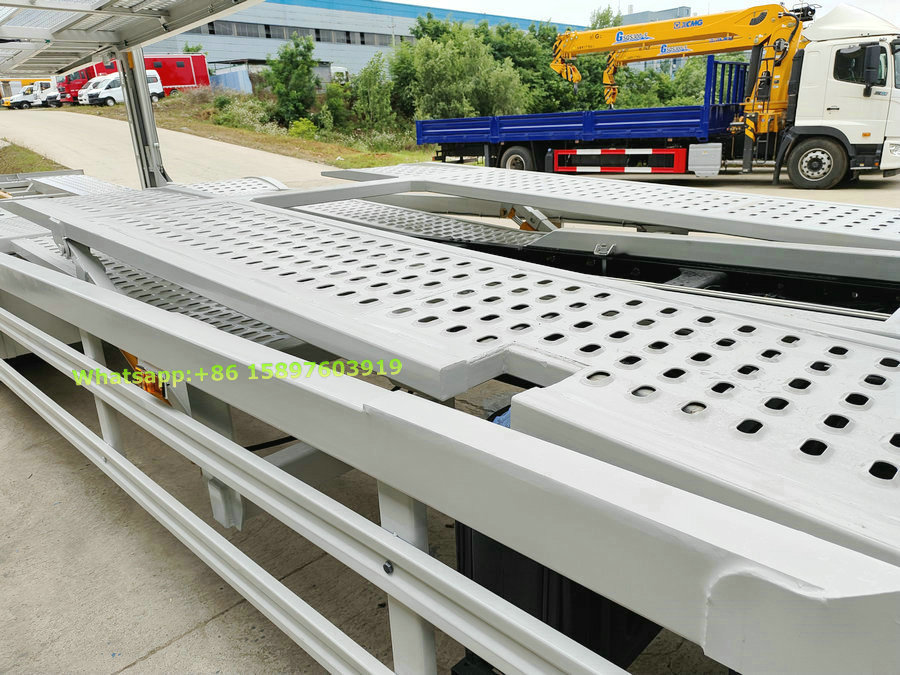

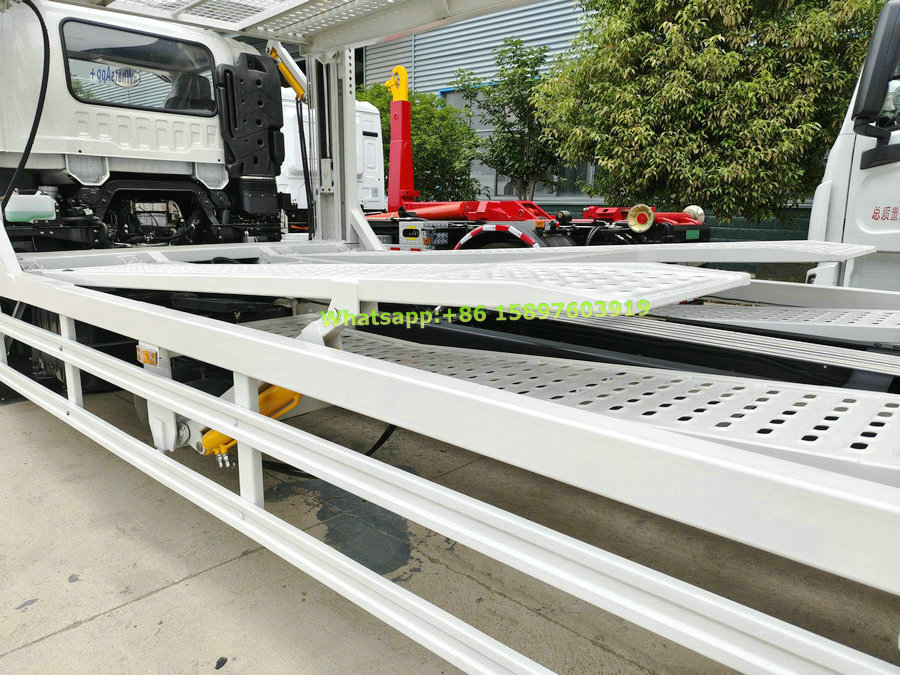

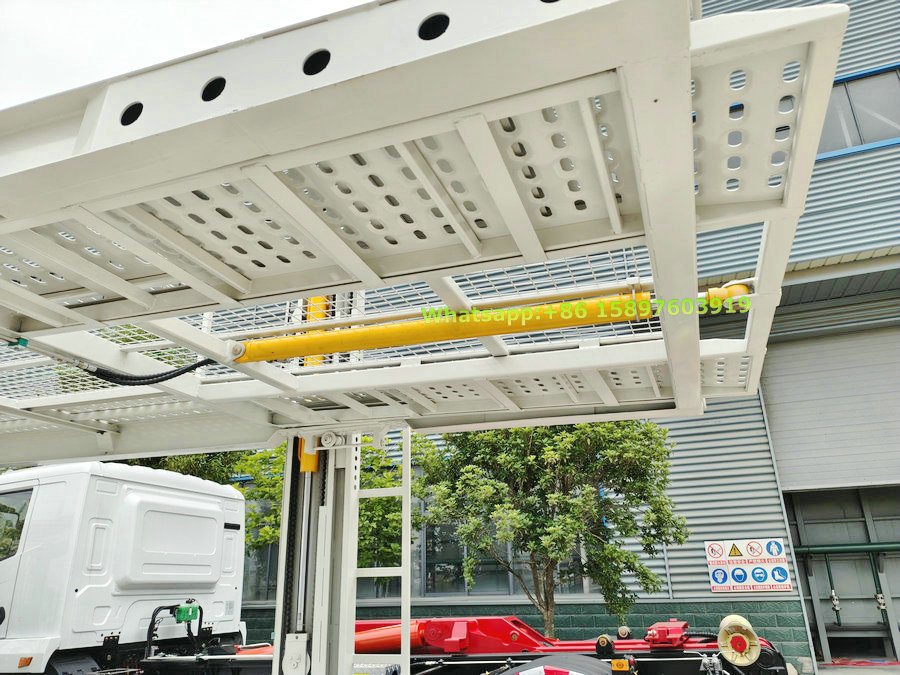

The perforated plate is made of 3mm thick Q235 steel. The four posts and three-stage jump are made of HG70 low-alloy high-strength material.
The side panels, front panels, rear doors, and roof panels constitute the body of the sedan. The side and front panels are usually enclosed with a cover to protect the vehicle from external damage during transportation.
The design of the rear door facilitates the entry and exit of vehicles, while the roof panel is designed in the form of a canopy or other forms according to different vehicle models.

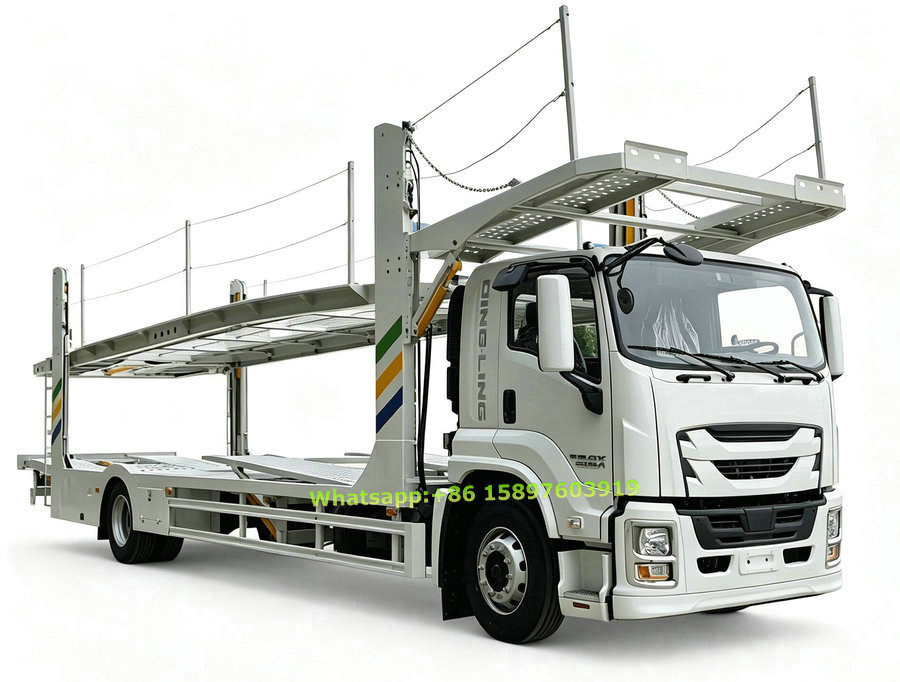

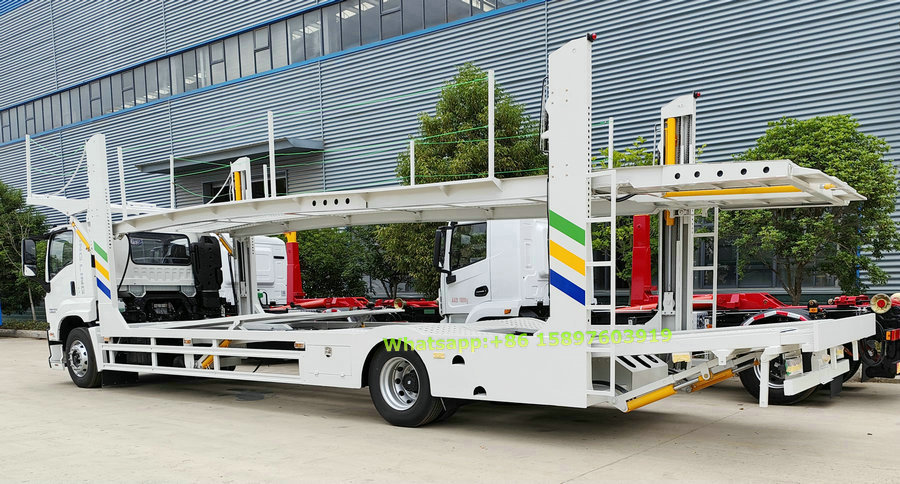

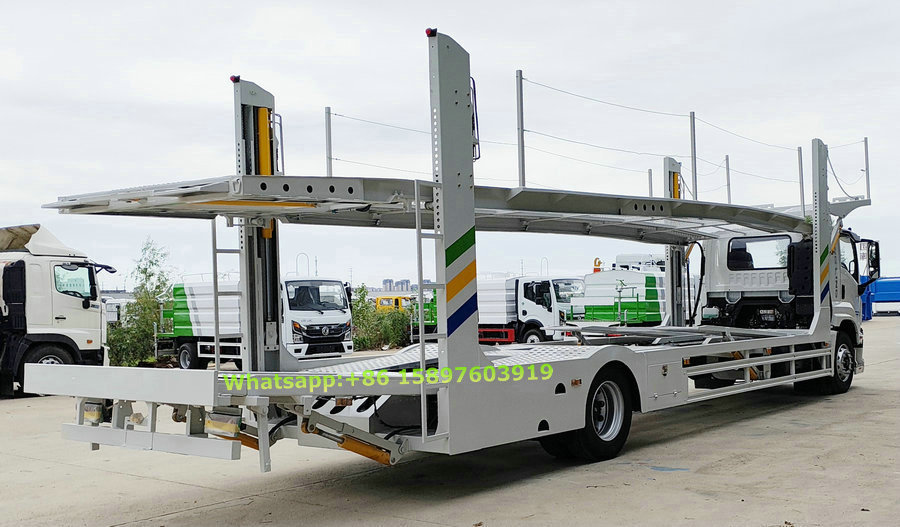

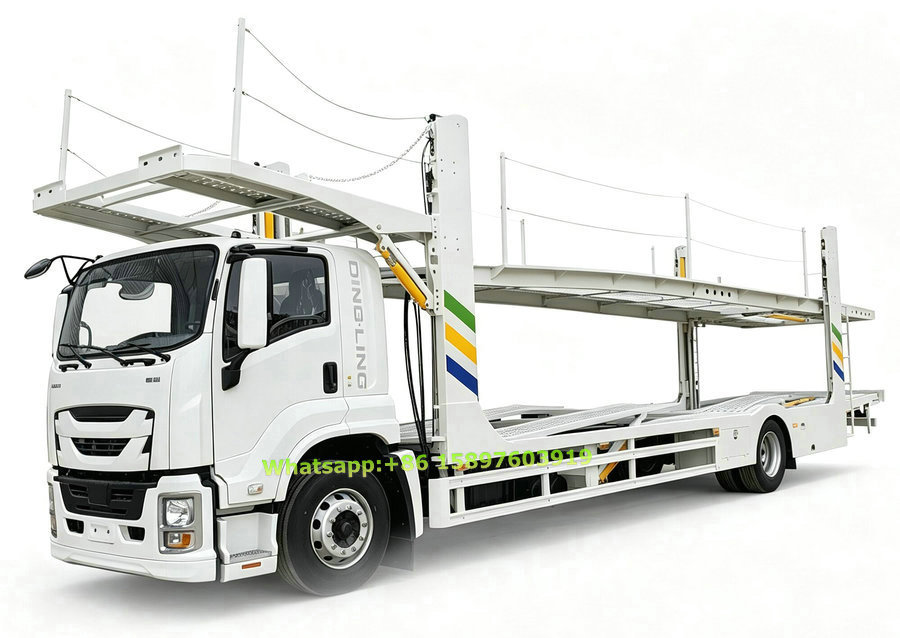

ISUZU GIGA 4×2 Double Deck Car Carrier Truck | Hydraulic Vehicle Transporter for 5-6 Cars |
 |
 |
 |
 |
 |

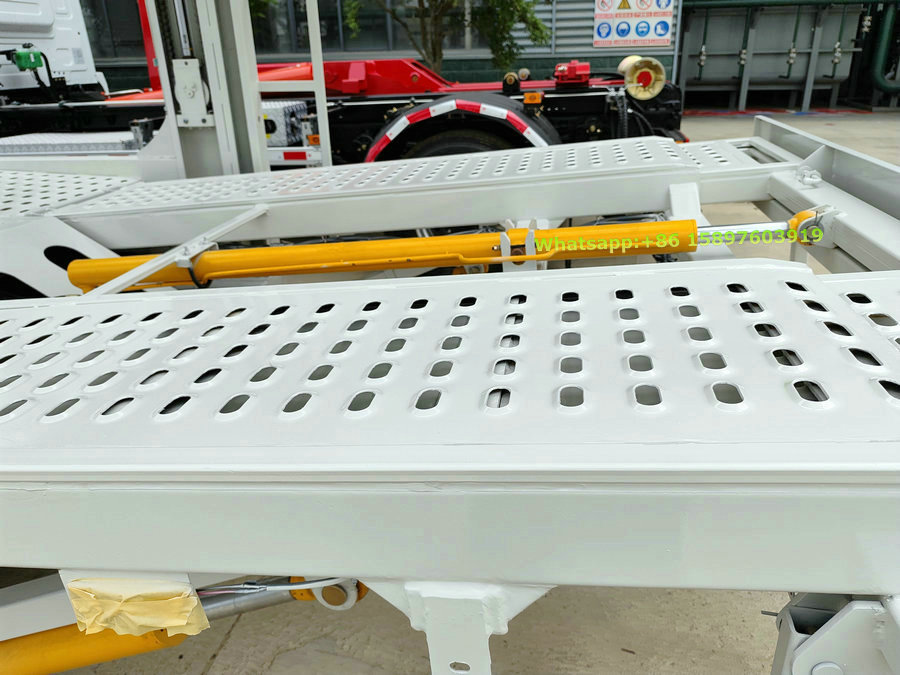

The lower board is equipped with a ramp and hydraulic lifting, which increases the utilization rate of the truck

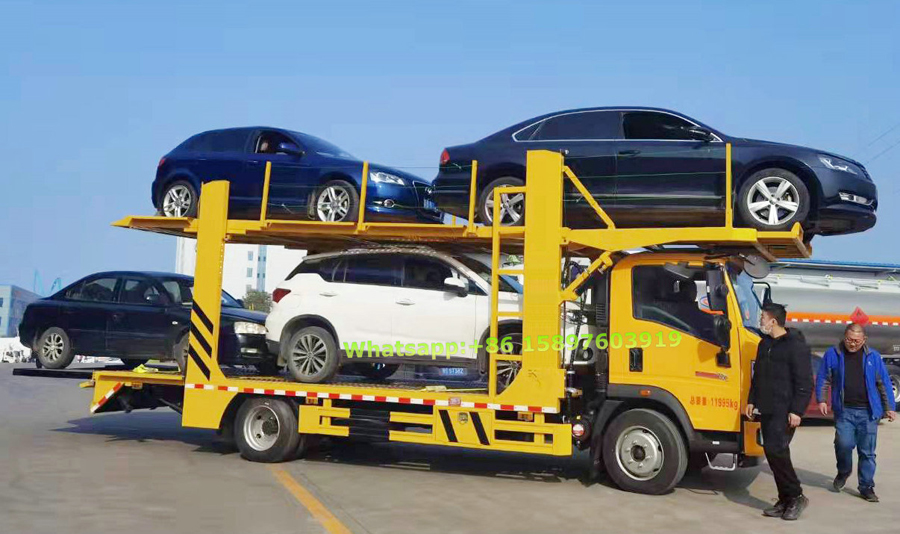

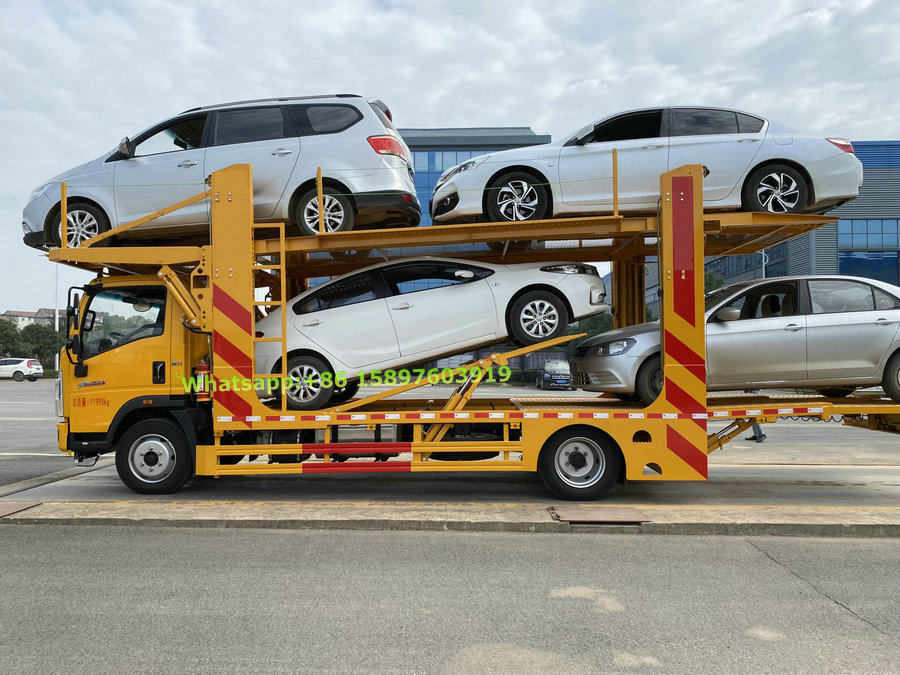

our factory produces the multi-purpose vehicle transport car sedan, which can be used for one tow two, one tow three, one tow four, one tow five.
and there are also new mid axle sedan cars waiting for you to choose from.
The brand series of two seater sedan transport vehicles (three seater sedan transport vehicles) includes brands such as Dayun, Dongfeng, JAC FAW, Kaima, Liuqi, FOTON, SINOTRUK HOWO, Yuejin, etc.

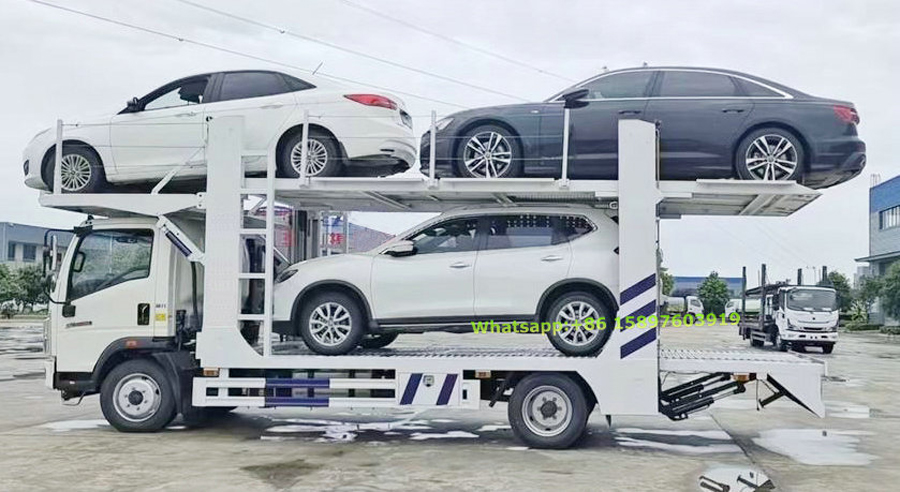

Two units sedan upper configuration:
The upper plate is equipped with a net length of 4.1 meters and a width of 2.2 meters,
the lower plate is equipped with a net length of 4.2 meters and a width of 2.4 meters,
and the lower plate surface is 0.8 meters above the ground.
The whole Truck is equipped with four imported oil cylinders and an imported Italian Hyde hydraulic control system. The upper part is made of high-strength low-alloy materials. Optional hydraulic winch Yellow card two seater sedan upper configuration: the upper plate is standard with a net length of 5.2 meters and a width of 2.2 meters, the lower plate is standard with a net length of 5.7 meters and a width of 2.4 meters, and the lower plate surface is 0.8 meters above the ground.
The whole truck is standard with 4 imported oil cylinders and an imported Italian Hyde hydraulic control system. The upper configuration is made of high-strength low-alloy materials. Optional hydraulic winch Optional 4-ton tow arm.
Heavy Truck HOWO four seater sedan transport vehicle, Weichai 160 horsepower National VI, Heavy Truck eight speed high and low speed, upper main board length of 8.5 meters, front extension of 1.2 meters, lower main board of 6.5 meters, rear extension of 2 meters, 245/70R19.5 tires, 4500 wheelbase

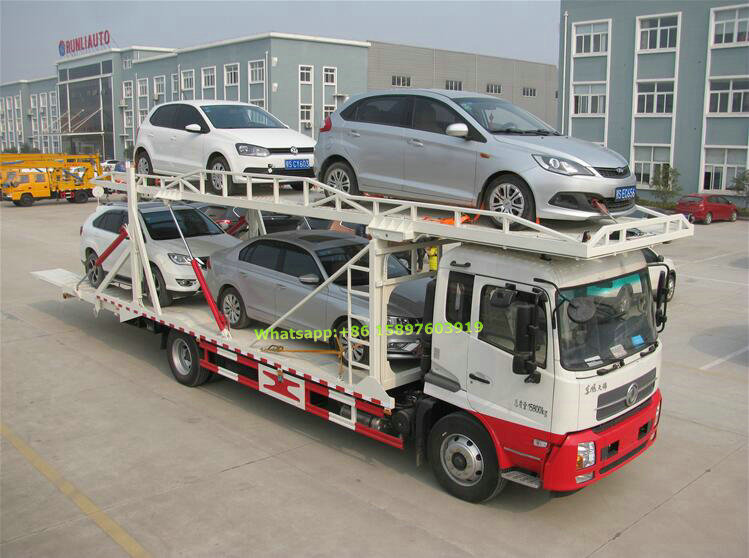

Dongfeng KingRun 4-5units sedan transport vehicle
The upper plate is 13-14 meters long (including a front manual extension of 0.5 meters and a rear hydraulic extension of 1.5 meters), and the lower plate is 10 meters long. The upper plate is only 2.7 meters above the ground, and the lower plate loading surface is only 0.7 meters above the ground. The distance between the upper and lower plates can be adjusted freely, and the distance between the upper and lower plates can be adjusted from 0 to 2.4 meters. The upper plate is made of low-alloy high-strength materials, painted in sedan grade, with a set of tools and 24 straps. Other accessories are standard.
Brand New Original ISUZU GIGA 4X2 FTR good performance:
ISUZU GIGA 4X2 FTR medium truck's main technical and economic characteristics
The world's leading Isuzu 4H engine |
Cabin: Lightweight and labor-saving operation with strong safety. The steering wheel angle and height can be adjusted, and the accelerator pedal is lightweight, labor-saving, and easy to control. Shifting is also lightweight, labor-saving, and the gear is clear, ensuring safety. In terms of braking, an ABS system has been added |
| Isuzu 4H engine Displacement: 5.2L Maximum torque: 650N · m Better fuel atomization effect, more complete combustion, smoother operation, lower noise Strong power, low fuel consumption, reliable and durable Suitable for Chinese usage environment |
 |
 |
High quality chassis High load capacity chassis The frame is specially treated with electrophoresis in humid, severe cold, and saline alkali climates, which can adapt to various harsh weather conditions. The lightweight design is an advanced design standard, and the weight is about 1 ton lighter than similar models |
 |
 |
 |
| Blue Color | Red color | White Color |
|
